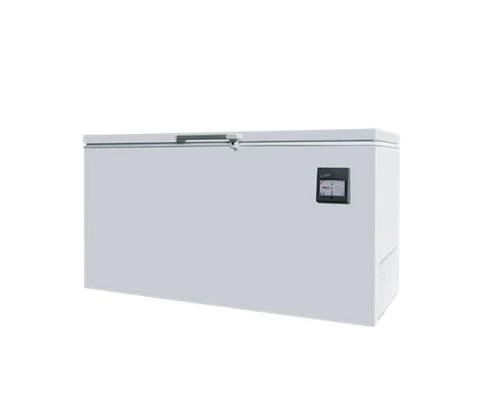

368L ULT Chest Freezer -86°C (230V)
Available for rental, lease or purchase
368L ULT Chest Freezer -86°C (230V)
The largest chest freezer in this ULT range, holding up to 282 standard 2" boxes at -20°C to -86°C. It is designed for central labs, biorepositories and depots that need bulk ultra-low storage for the duration of a trial.
The touchscreen controller keeps more than a year of temperature and alarm data, with USB export and Modbus for connection to a monitoring system. A lockable lid, battery-backed controller and remote alarm contact help keep samples protected overnight and at weekends.
Available in 230V only.
- Adjustable from -20°C to -86°C, covering standard frozen and ultra-low protocols in one unit
- Holds up to 282 standard 2" sample boxes (approx. 28,200 x 2 ml vials)
- Top-opening lid holds cold air in when the freezer is opened
- Touchscreen controller with a live temperature graph and event log
- Built-in data logger stores more than a year of temperature and alarm history, with USB export and Modbus connection to site monitoring systems
- Alarms for high or low temperature, power failure and probe failure
- Controller battery backup keeps alarms working during a power cut
- Dry contact for linking to a remote alarm system
- 12.5 mm access port for fitting an independent temperature probe
- Lockable lid to restrict access to study samples
- Four castors with brakes, so the unit can be moved and then held in place
- Uses a natural, low environmental impact refrigerant
- Model number: WD7ULT170
- Capacity: 368 L | 13.0 cu.ft
- Sample storage capacity: 282 x 2" boxes (approx. 28,200 x 2 ml vials)
- Temperature range: -20°C to -86°C
- Voltage / frequency: 220V, 50Hz
- External dimensions (H x W x D): 83.1 x 157 x 60.8 cm | 32.7 x 61.8 x 23.9 inches
- Internal dimensions (H x W x D): 62.4 x 141 x 44 cm | 24.6 x 55.5 x 17.3 inches
- Weight (net): 93 kg | 205 lbs
- Pull-down time: 150 minutes
- Hold-over time on power failure: Approx. 75 minutes
- Energy consumption: 10.8 kWh/24h
- Noise level: 55 dB
- Maximum room temperature: 25°C, 65% humidity
- Data logging: Internal data logger (more than 1 year), USB export, Modbus
- Remote alarm output: Dry contact
- Access port: 12.5 mm
- Interior: Painted steel
- Mobility: 4 castors with brakes
