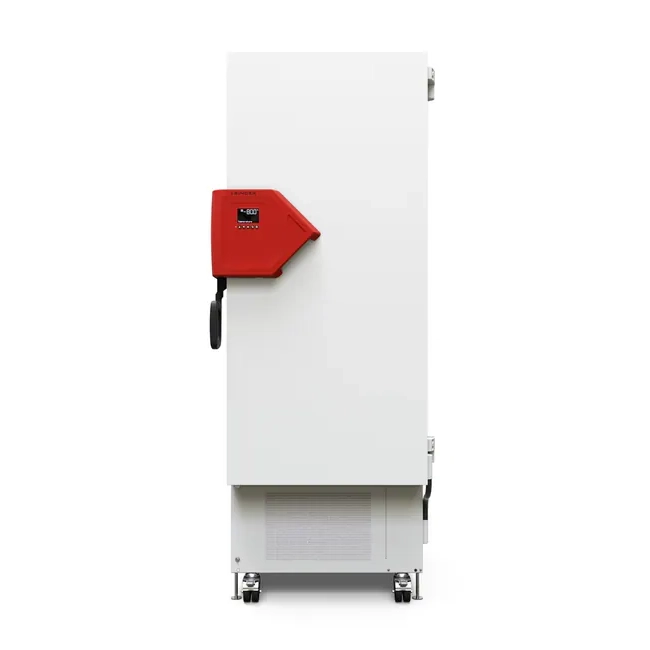

477L Upright ULT Freezer -90°C (230V)
477L Upright ULT Freezer -90°C (230V)
A full-size upright ULT freezer for long-term storage at -40°C to -90°C, with capacity for up to 352 standard 2" boxes. It suits central labs, depots and high-enrolment sites that need to hold large sample volumes for the life of a study.
Two insulated inner doors limit warm air getting in when the freezer is opened, and the cabinet recovers to -80°C in around 18 minutes after a one-minute door opening. If the power fails, it takes almost four hours to warm from -80°C to -60°C, which gives staff time to respond.
An internal data logger with USB read-out, an Ethernet interface and a zero-voltage alarm contact allow connection to site monitoring and alarm systems.
Available in 230V.
- Temperature range of -40°C to -90°C for long-term sample storage
- Holds up to 352 standard 2" sample boxes, with 3 shelves included (up to 13 can be fitted)
- Two stainless steel inner doors reduce temperature loss when the main door is opened
- Recovers to -80°C in around 18 minutes after a one-minute door opening
- Takes almost four hours to warm from -80°C to -60°C during a power failure
- Internal data logger with USB read-out and Ethernet interface
- Battery-backed high/low temperature alarm with zero-voltage contact for remote alarm systems
- Two 28 mm rear access ports for independent temperature probes
- Vacuum insulated panels and low energy use for its size (7.9 kWh/24h at -80°C)
- Door gasket designed to reduce ice build-up
- Four castors, two of them lockable
- Natural refrigerants with cascade cooling
- Optional CO2 backup cooling system
- Model number: WD7ULT155
- Capacity: 477 L | 16.8 cu.ft
- Sample storage capacity: 352 x 2" boxes
- Temperature range: -40°C to -90°C
- Voltage / frequency: 230V, 50Hz
- External dimensions (H x W x D): 196.6 x 82.6 x 93.8 cm | 77.4 x 32.5 x 36.9 inches
- Internal dimensions (H x W x D): 130 x 60.6 x 60.5 cm | 51.2 x 23.9 x 23.8 inches
- Weight (net): 247 kg | 545 lbs
- Pull-down time: 360 minutes (+22°C to -80°C)
- Hold-over time on power failure: Approx. 230 minutes (-80°C to -60°C)
- Door-opening recovery: Approx. 18 minutes to -80°C after 1 minute door opening (empty)
- Energy consumption: 7.9 kWh/24h at -80°C
- Noise level: 47 dB
- Data logging: Internal data logger, USB read-out, Ethernet
- Remote alarm output: Zero-voltage alarm contact
- Access port: 2 x 28 mm (rear)
- Interior: Stainless steel
- Mobility: 4 castors, 2 lockable
- Inner doors / shelves: 2 inner doors, 3 shelves included (max. 13)
- Permitted load: 200 kg total, 50 kg per compartment
- Wall clearance: 100 mm rear, 250 mm sides
- Power: 1.6 kW nominal, 10 A fuse
