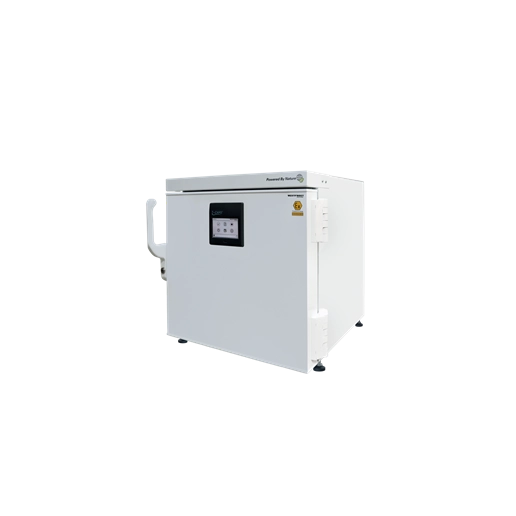

37L Tabletop ULT Freezer -86°C (230V)
Available for rental, lease or purchase
37L Tabletop ULT Freezer -86°C (230V)
This 37 litre tabletop ULT freezer holds up to 33 standard 2" boxes at any setting from -20°C to -86°C. Its small footprint makes it a good fit for site labs and pharmacies where bench space is tight.
It is also compact enough to be sent by air freight, which helps when a site needs ultra-low storage at short notice.
The touchscreen controller logs temperature and alarm events for more than a year, with USB export and a Modbus connection for linking to a site monitoring system. Alarms cover high and low temperature, an open door, power failure and probe failure.
Available in 230V only.
- Adjustable from -20°C to -86°C, covering standard frozen and ultra-low protocols in one unit
- Suitable for air freight, useful for urgent site set-ups
- Holds up to 33 standard 2" sample boxes (approx. 3,300 x 2 ml vials)
- Modbus connection for site temperature monitoring systems
- LED interior light
- Built-in data logger stores more than a year of temperature and alarm history, exported by USB for your study files
- 5" touchscreen with a live temperature graph and event log, so site staff can check conditions at a glance
- Alarms for high or low temperature, door left open, power failure and probe failure
- Controller battery backup keeps alarms working for up to 24 hours during a power cut
- Dry contact for linking to a building management or remote alarm system
- 20 mm access port for fitting an independent temperature probe
- Lockable door to restrict access to study samples
- Vacuum release valve, so the door can be reopened straight after closing
- Vacuum insulated panels and a variable-speed compressor help hold a steady temperature while keeping energy use down
- Stainless steel interior that is easy to clean
- Uses a natural, low environmental impact refrigerant
- Model number: WD7ULT152
- Capacity: 37 L | 1.3 cu.ft
- Sample storage capacity: 33 x 2" boxes (approx. 3,300 x 2 ml vials)
- Temperature range: -20°C to -86°C
- Voltage / frequency: 230V, 50/60Hz
- External dimensions (H x W x D): 63.1 x 63 x 67.5 cm | 24.8 x 24.8 x 26.6 inches
- Internal dimensions (H x W x D): 43.3 x 43.9 x 27.1 cm | 17.0 x 17.3 x 10.7 inches
- Weight (net): 59 kg | 130 lbs
- Pull-down time: 84 minutes
- Hold-over time on power failure: Approx. 105 minutes
- Energy consumption: 3.25 kWh/24h
- Noise level: 46 dB
- Maximum room temperature: 32°C, 65% humidity
- Data logging: Internal data logger (more than 1 year), USB export, Modbus
- Remote alarm output: Dry contact
- Access port: 20 mm
- Interior: Stainless steel
- Mobility: 4 adjustable feet
