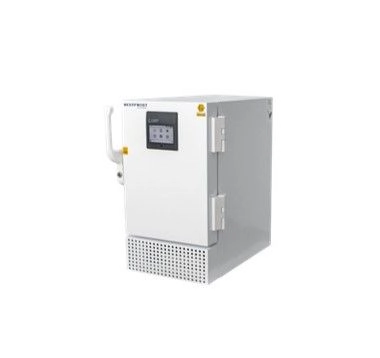

50L Tabletop ULT Freezer -86°C (Dual Voltage)
Available for rental, lease or purchase
50L Tabletop ULT Freezer -86°C (Dual Voltage)
A tabletop ULT freezer with room for up to 30 standard 2" sample boxes, adjustable from -20°C to -86°C. It is a practical size for sites holding several weeks of samples between shipments, without giving up floor space to an upright unit.
Temperature and alarm data are logged for more than a year and can be downloaded via USB, giving you a clear record of storage conditions for monitoring visits and inspections. Two castors and two adjustable feet make it easier to move into position.
Dual voltage (100-240V, 50/60Hz), suitable for sites worldwide.
- Adjustable from -20°C to -86°C, covering standard frozen and ultra-low protocols in one unit
- Dual voltage (100-240V, 50/60Hz) for use at sites worldwide
- Holds up to 30 standard 2" sample boxes (approx. 3,000 x 2 ml vials)
- Two castors and two adjustable feet for easier positioning
- Built-in data logger stores more than a year of temperature and alarm history, exported by USB for your study files
- 5" touchscreen with a live temperature graph and event log, so site staff can check conditions at a glance
- Alarms for high or low temperature, door left open, power failure and probe failure
- Controller battery backup keeps alarms working for up to 24 hours during a power cut
- Dry contact for linking to a building management or remote alarm system
- 20 mm access port for fitting an independent temperature probe
- Lockable door to restrict access to study samples
- Vacuum release valve, so the door can be reopened straight after closing
- Vacuum insulated panels and a variable-speed compressor help hold a steady temperature while keeping energy use down
- Stainless steel interior that is easy to clean
- Uses a natural, low environmental impact refrigerant
- Model number: WD7ULT150
- Capacity: 50 L | 1.8 cu.ft
- Sample storage capacity: 30 x 2" boxes (approx. 3,000 x 2 ml vials)
- Temperature range: -20°C to -86°C
- Voltage / frequency: 100-240V, 50/60Hz (dual voltage)
- External dimensions (H x W x D): 83.6 x 69.9 x 72 cm | 32.9 x 27.5 x 28.3 inches
- Internal dimensions (H x W x D): 31 x 36 x 44.5 cm | 12.2 x 14.2 x 17.5 inches
- Weight (net): 82 kg | 181 lbs
- Pull-down time: 90 minutes to -75°C
- Hold-over time on power failure: Approx. 102 minutes (-82°C to -60°C)
- Door-opening recovery: Approx. 32 minutes after 1 minute door opening
- Energy consumption: 4.34 kWh/24h at -80°C
- Noise level: Under 48 dB
- Maximum room temperature: 32°C, 65% humidity
- Data logging: Internal data logger (more than 1 year), USB export
- Remote alarm output: Dry contact
- Access port: 20 mm
- Interior: Stainless steel
- Mobility: 2 adjustable feet, 2 castors
